24" 4AN Steel Braided Brake Line
- AN-03 or AN-04 Sizes
- With Both Straight Ends or One 90° End
- Lengths from 14" to 48"

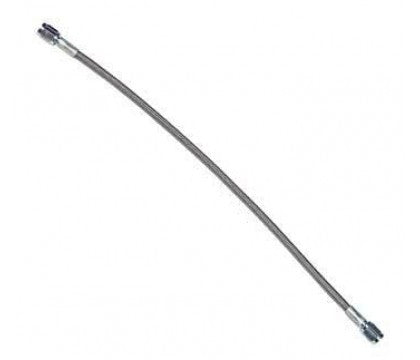

Pro-Tek Stainless Steel Braided Brake Lines are a smooth bored PTFE lined hose wrapped in a stainless steel braid, excellent for brake or clutch applications. These lines are available in AN-03 and AN-04 bore sizes with two straight ends or with one straight and one 90° end.
For off-Highway, motorsport use only.
| Spec. | AN-03 | AN-04 |
|---|---|---|
| Working Pres. | 4205 psi | 4206 psi |
| Burst Pres. | 12618 psi | 12618 psi |
| Temp. Range | -94°F/+500°F | -94°F/+500°F |
| Bend Radius | 1.5” (38mm) | 1.97" (50mm) |
