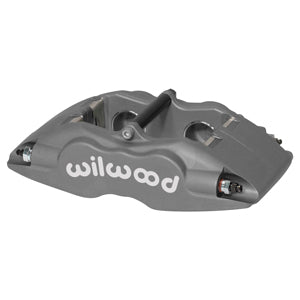

Wilwood Forged Superlite Caliper 120-11135
Wilwood Superlite Caliper 1.750" piston , suitable for 1" Rotor
| Pistons | |
|---|---|
| Piston Count | 4 |
| Piston Area (in²) | 4.80 |
| Piston Type | Stainless |
| Dust Boot | No |
| Rotor Dimensions | |
| Rotor Width (in) | 1.10 |
| Rotor Diameter(in) | 13.06 |
| Pad Dimensions | |
| Pad Area (in²) | 8.2 |
| Pad Volume (in³) | 4.9 |
| Duty Rating & Material | |
| Material | Forged Aluminium |
| Weight(Lbs) | 5.2 |
| Colors & Finish | |
| Color | Anodize |
| Finish | Type III Anodize |
| Mounting | |
|---|---|
| Mount Center(in) | 3.50 |
| Mount Position | |
| Mount Side | Universal |
| Mount Type | Lug |
